Create the Service Request

Now that the integration has been created, we can begin to add logic to it. For this tutorial, we will simply call the randomuser.me API and receive its response.

Right click on the integration, click Go To, then click Service Request.

You will see an empty table.

On the toolbar along the bottom of the screen, click the plus icon (+) to add a new Service Request. This will create a new row in the table, which will be highlighted in green to indicate it was newly created.

We need to fill out three columns on this service request. You may need to scroll your screen to the right to see all of them.

Column
Value

System

HTTP

Service Name

n/a

Formula Variable

request_users

Save your changes by clicking the Save icon on the bottom toolbar.

Next, we will create the Field Mappings for this Service Request.

Create the Field Mappings

Right click along the service request's row, then click Go To, then click Field Mapping. You will see an empty table.

Create two new field mappings by clicking the plus icon (+) on the bottom toolbar twice. Fill out the first field mapping by entering the following values in the first row:

Column
Value

Field

method

Value

"GET"

Value Type

str

Then, fill out the second field mapping with the following values:

Column
Value

Field

url_path

Value

"/api"

Value Type

str

Save your changes.

You can verify that you're on the correct page by checking the Component dropdown on the top-left of the page. At this step, it should read "Field Mapping".

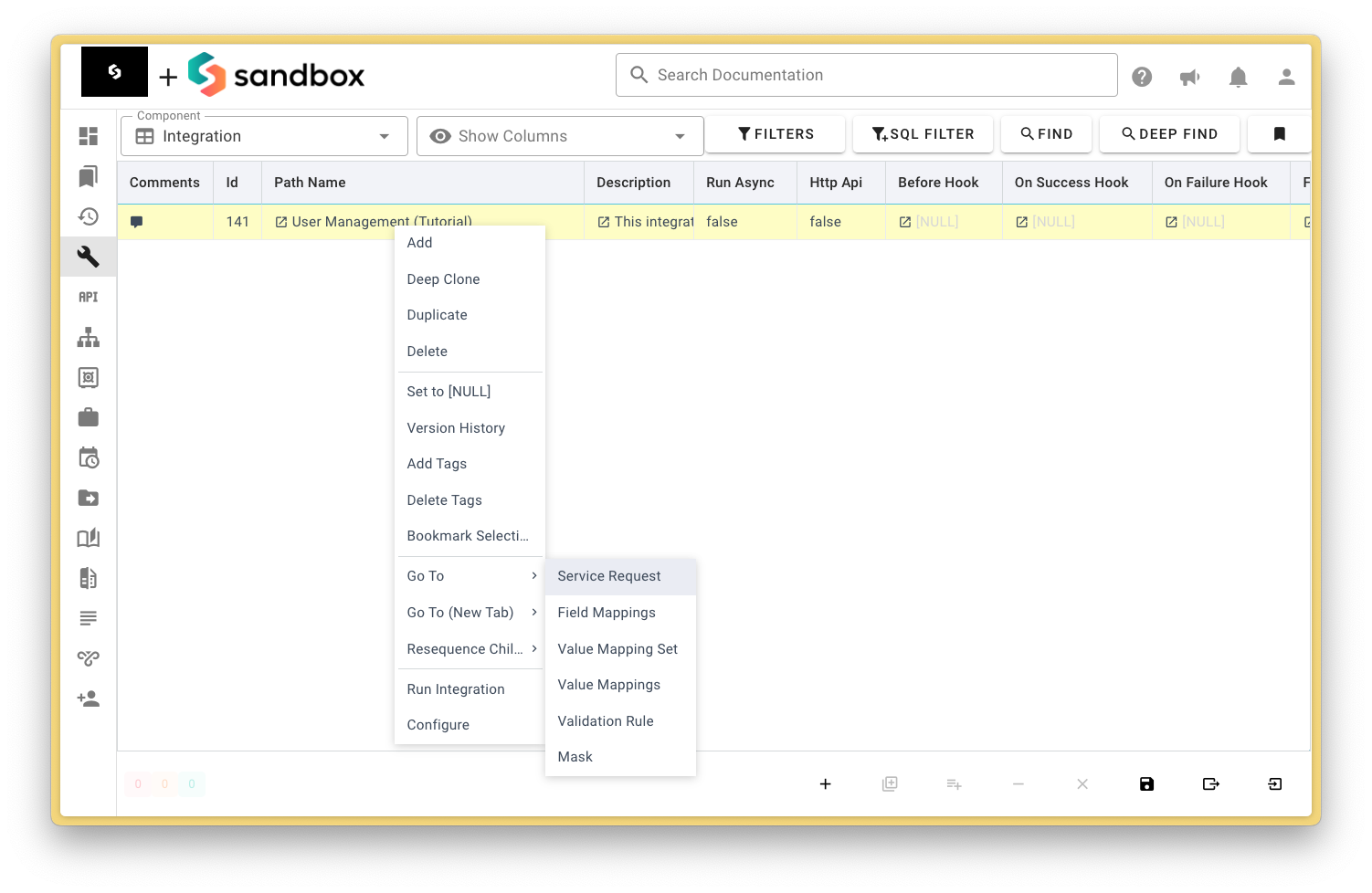

Right click > Go To > Service Request
Newly created, empty Service Request

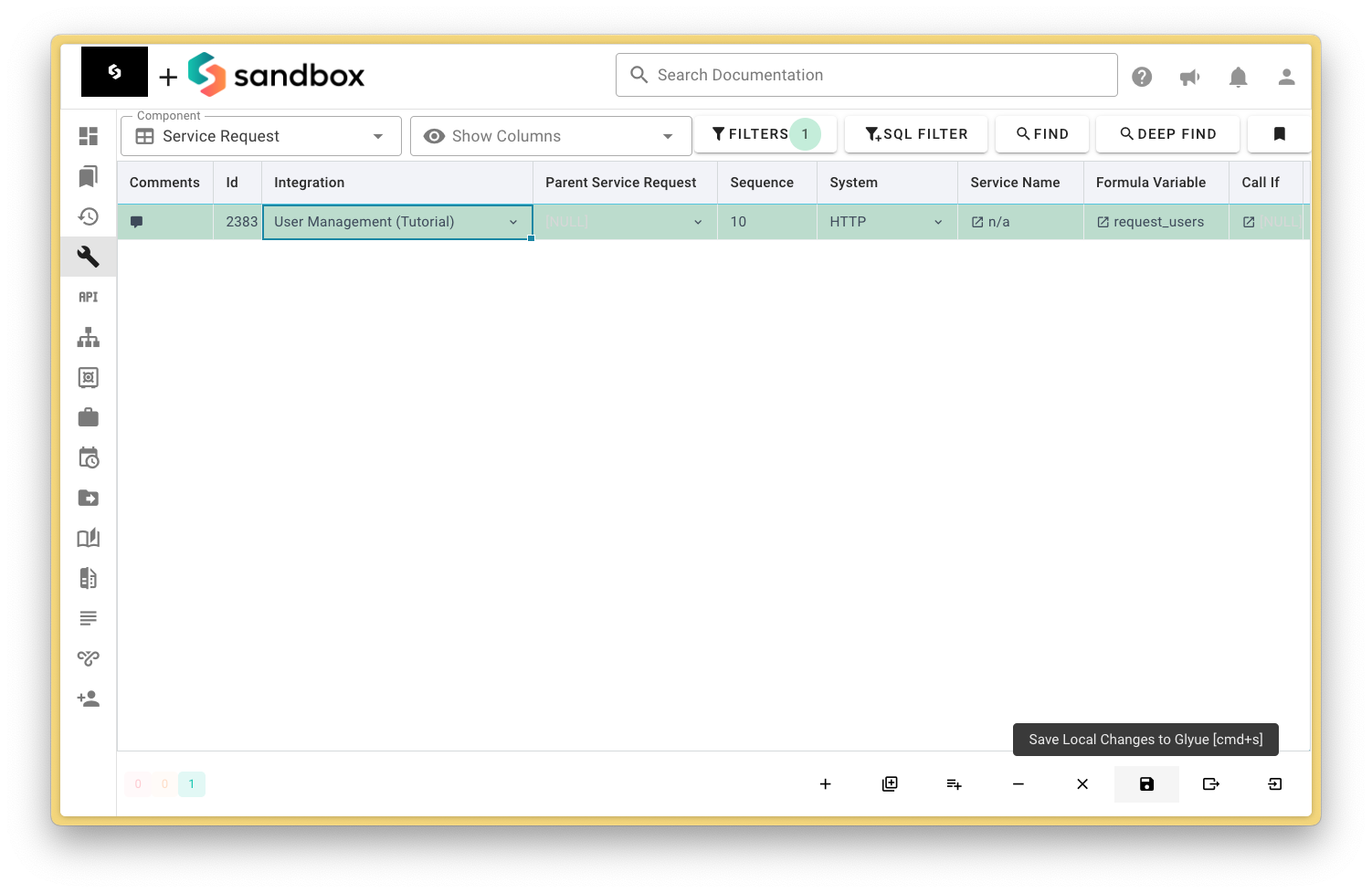

Filled out Service Request

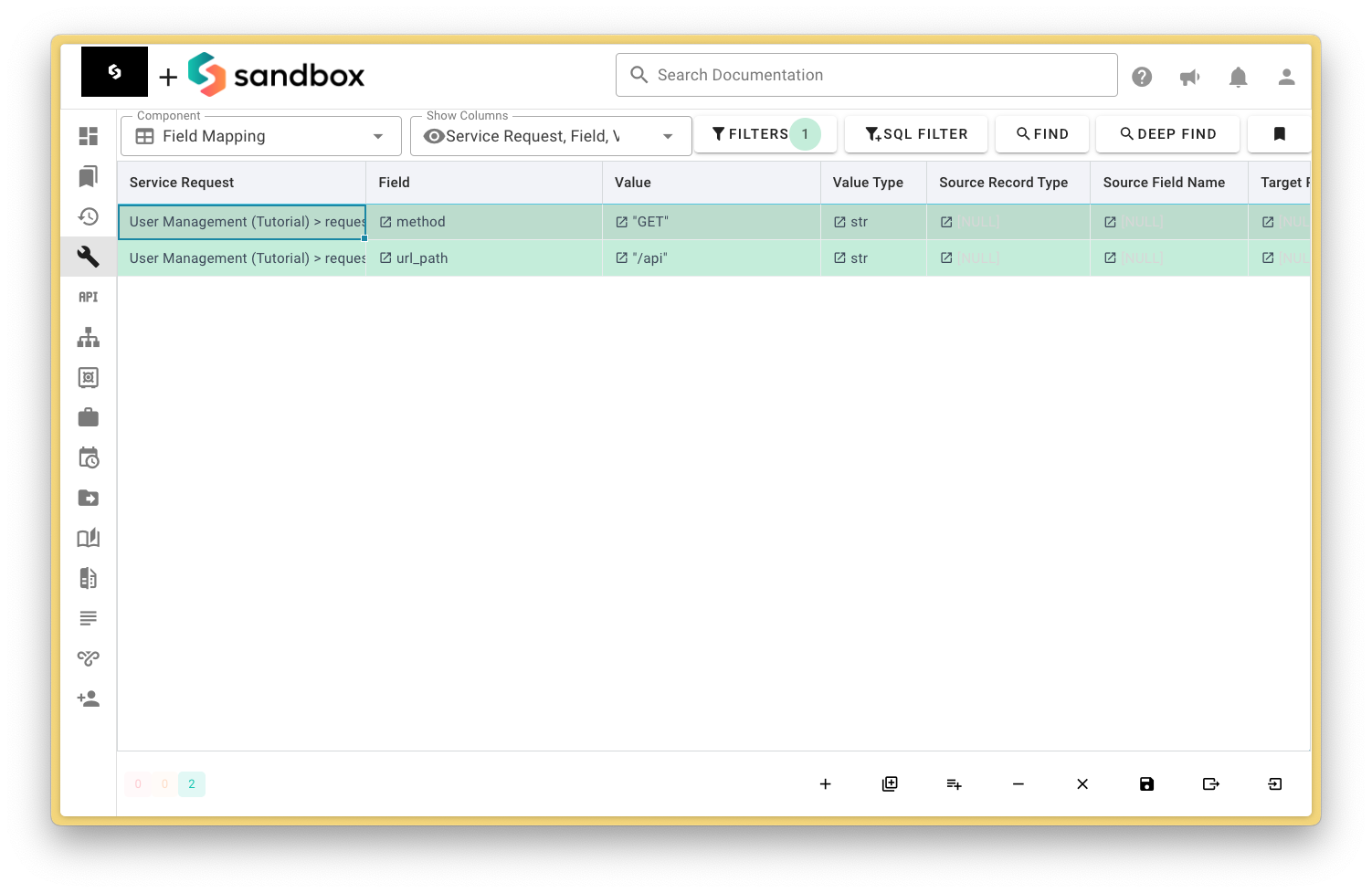

Two field mappings, method and url_path
