JumpCloud Setup

Before continuing, this user should be a JumpCloud admin for the organization, and a SAML Config must be created in the Integration Gateway Environment.

Create the Integration Gateway SSO Application in JumpCloud

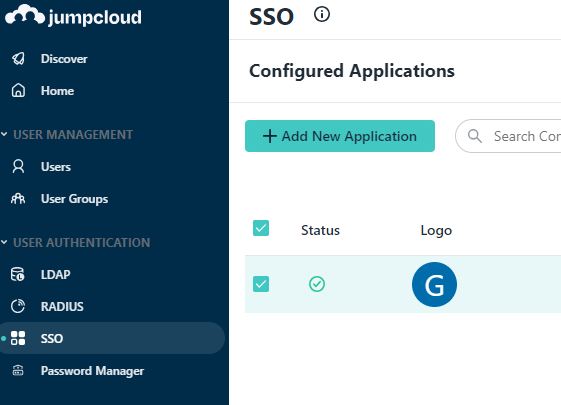

From the JumpCloud dashboard, select SSO from the left-hand navbar and click the Add New Application button.

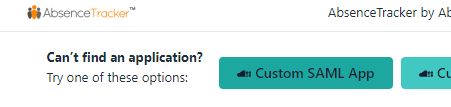

At the bottom of the page, click the Custom SAML App button.

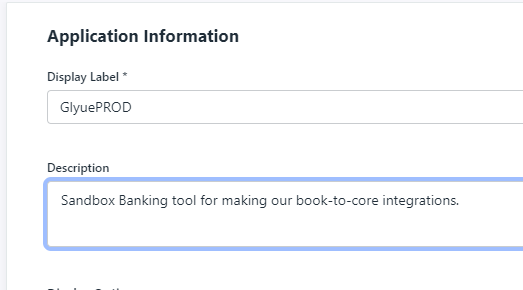

Provide a Display Label. We recommend something like Integration Gateway DEV, Integration Gateway PROD, etc. Provide a Description if desired.

Provide Integration Gateway's SAML Metadata to JumpCloud

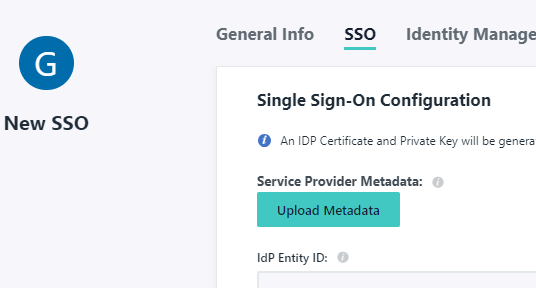

Click the SSO tab.

The Integration Gateway environment SAML metadata will be required for the next step.

Integration Gateway always serves its metadata at https://[domain]/sso/saml2/metadata/. If this user is also a Integration Gateway administrator, the metadata URL will be displayed on the Admin site under SAML Configs.

Click the Upload Metadata button and upload the metadata provided by Integration Gateway.

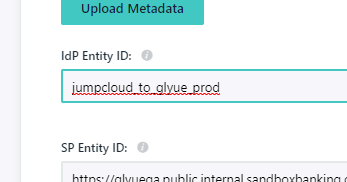

Provide a custom IdP Entity ID. Any unique value will do.

Add Users

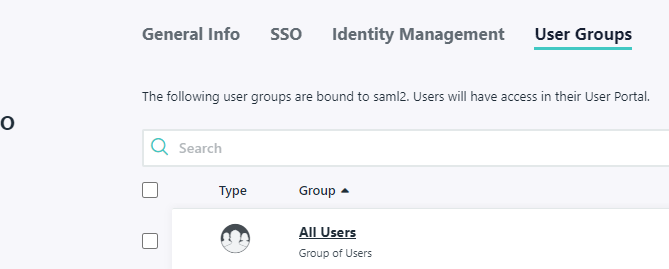

On the User Groups tab users/groups can be assigned to the application. Only assigned users/groups will be able to authenticate with Integration Gateway via JumpCloud.

Add the desired users/groups for the organization. This can also be done later.

Activate the SSO App

Click Activate at the bottom of the screen.

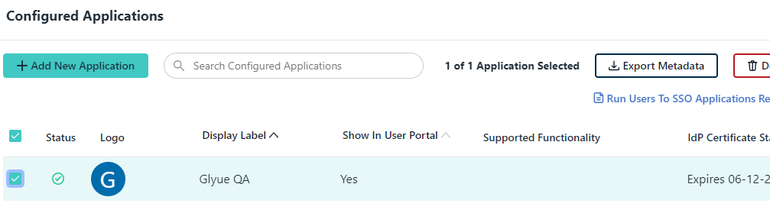

Back in Configured Applications, select the new SSO App and click Export Metadata.

An XML file should be downloaded. This file will be needed on the Integration Gateway side in order to add JumpCloud as an IdP, which is the last step. If not a Integration Gateway admin, please provide this file to a Sandbox Banking employee.

Lastly…

Don’t forget to assign users or groups to the new application- otherwise they won’t be able to authenticate with Integration Gateway via SSO.
