Creating the Integration

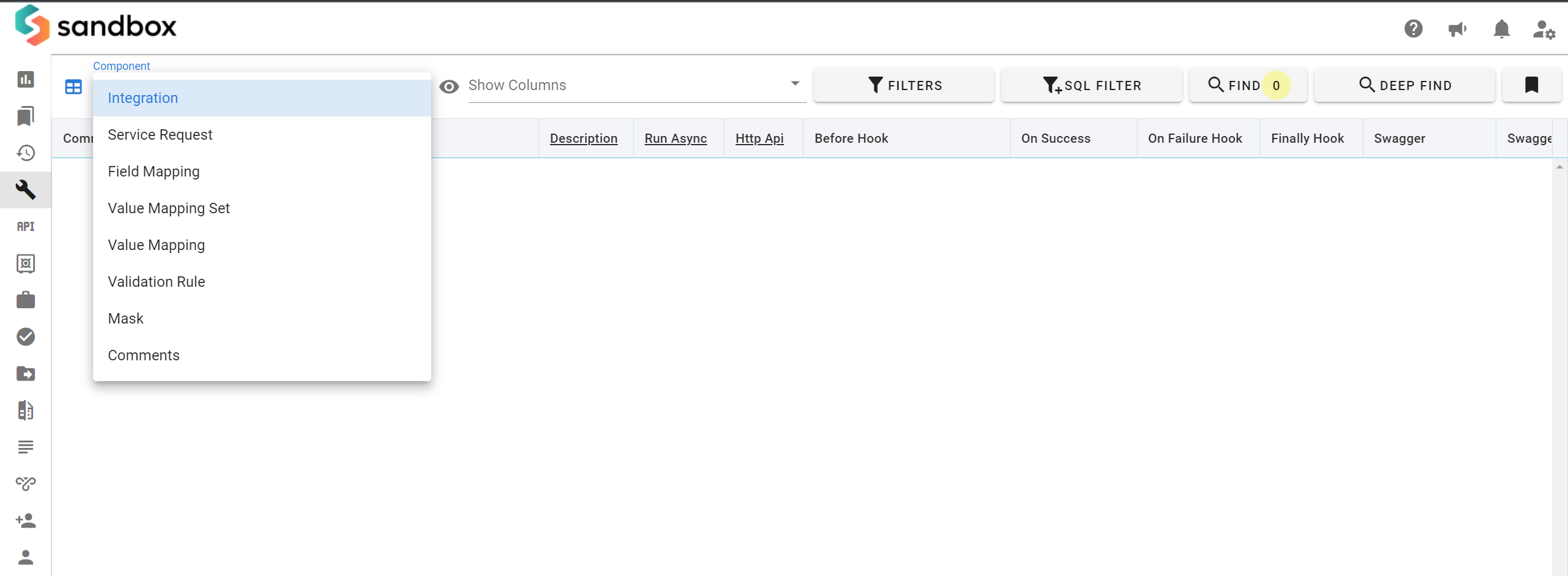

The first step to building a Customer360 retrieval API would be to create a new row on the integration table of the build page. Navigate to the Build page and change the current component to the Integration option.

Once there, press the "Add Row" button to create the integration. You'll need to provide a Path Name as well as a description in order to save the added integration using the save button on the bottom of the screen.

Configuring the Integration To complete this step, you'll need access to the Glyue Admin Page. Navigate to the Admin Page using the panel on the left hand side of the screen. Scroll down until you find the configuration item labelled "Integration Configs" and click the "Add New" button next to it. Choose the appropriate integration name that you created earlier and choose the settings you'd like configured for this integration. Check the "Store payloads in run history" box to trace the data when building and using the integration. From here, find the configuration item labelled "Adapter Configs: FIS IBS (Code Connect)" in the left-hand side menu and click to add a new item. If you are building an integration to a different CodeConnect core, choose the appropriate item; i.e. "Adapter Configs: FIS Horizon (Code Connect) " for the Horizon core. Fill in the corresponding credentials on the configuration page. You'll need to reference your CodeConnect portal or reach out to your FIS account representative for access to some of this information.

Once completed, scroll down the left pane until you find the configuration item labelled "Adapter Config Bindings" and add a new item. Choose the corresponding integration that you just created and the Adapter Config you just created and click save. This step essentially assigns the Integration to use the adapter configuration information we just provided when interacting with the core.
