How to Migrate an Integration

PreviousHow to Build and Deploy a Custom FrontendNextHow to Set Up Single Sign On (SSO)

Last updated 7 months ago

Was this helpful?

When developing integrations, Sandbox Banking Solution Engineers utilize separate DEV and PROD environments to write code and test changes before deploying that code to a production environment.

When changes to an integration are ready to be deployed to the PROD environment, Glyue provides two methods for performing a migration:

Migrating a Whole Integration

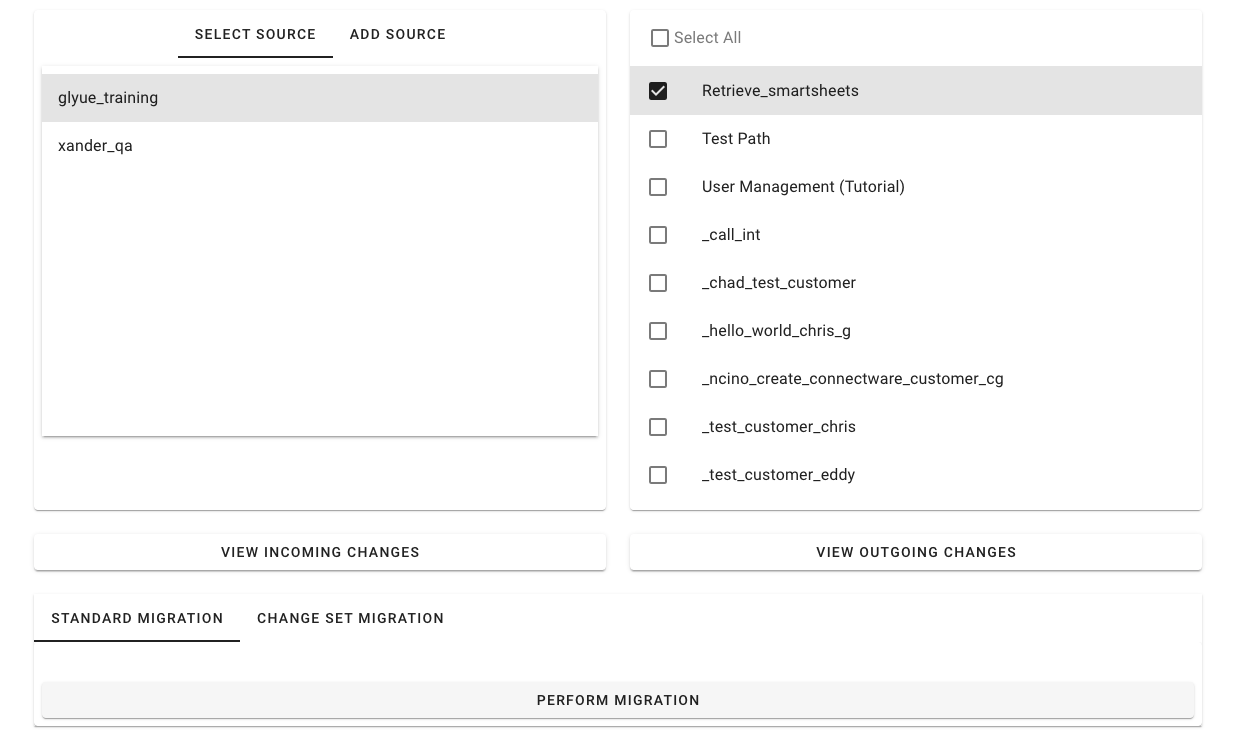

The Migrate page (pictured below) allows a user to select integrations from a source environment (often, the DEV environment) to be migrated into the destination system (the current logged-in environment, often PROD).

To migrate an integration in its entirety:

  1. Navigate to the Migrate page using the navigation sidebar.

  2. Select the Source environment in the left-hand pane. Often, this is the corresponding DEV environment.

  3. Select the integration(s) to be migrated in the right-hand pane.

  4. Verify that the Standard Migration option is selected, then click Perform Migration.

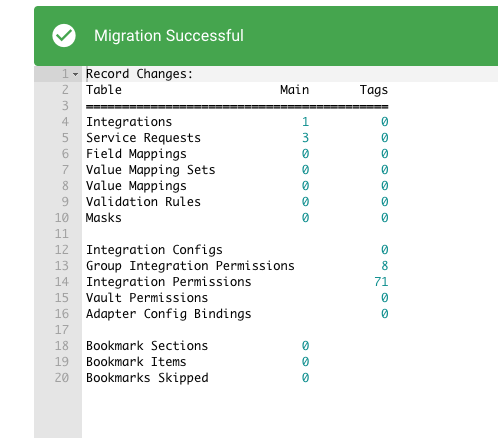

  5. Verify that the correct integration(s) were migrated by reviewing the migration summary (pictured below).

In the example above, we see that 1 integration, which contained 3 Service Requests, was migrated.

Migrating a whole integration will replace the copy of the integration that's currently in the environment.

Migrating Part of an Integration

Glyue also supports migrating selected portions of an integration, while leaving the rest of the integration as-is. The selected changes are called a changeset, and this type of migration is called a Changeset Migration.

Changeset migrations are useful in situations such as:

  • There is parallel development on different parts of an integration

  • The DEV version of an integration contains development-specific logic that should not be migrated to a production environment

To perform a changeset migration:

  1. Navigate to the Migrate page using the navigation sidebar.

  2. Select the Source environment in the left-hand pane. Often, this is the corresponding DEV environment.

  3. Using the View Changes page, select the changes you wish to include in the migration changeset by setting the Migrate column to true for the selected rows.

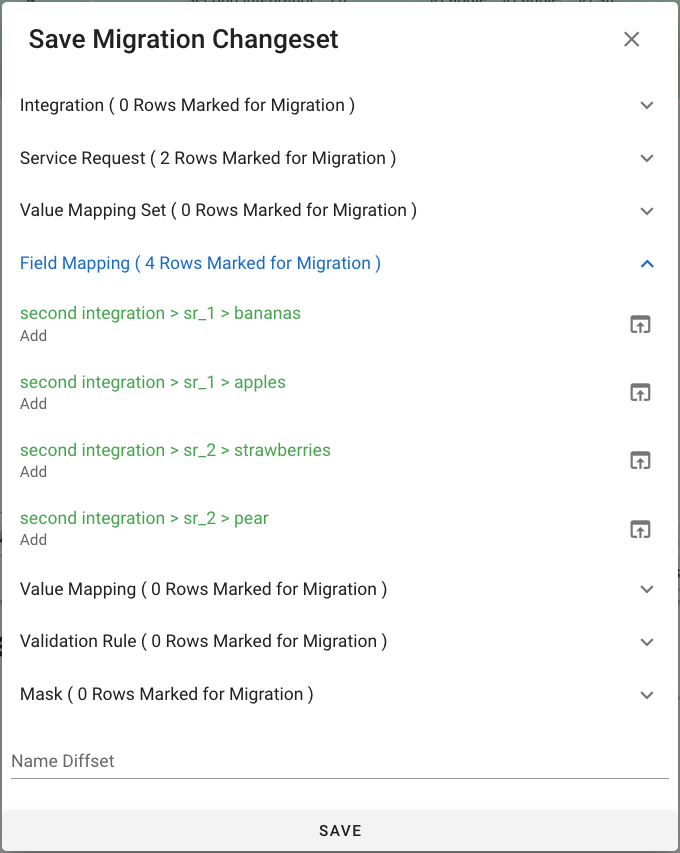

  4. When you're finished selecting specific changes, click Save Change Set on the toolbar along the bottom right. This will show a summary of the selected changes, along with a text field to optionally name your change set. Enter a descriptive name for the changes.

  1. Click Migrate Change Set on the toolbar along the bottom right. This will take you back to the Migrate page.

  2. On the Migrate page, reselect the source system and integration. Then select the Change Set Migration mode, select the changeset you created in step 5, then click Migrate Change Set.

  1. Verify that the correct changes were migrated by reviewing the migration summary.

Click View Incoming Changes. This will open the View Changes page, which resembles the Build page, but includes two additional columns. Migrate indicates whether a change should be included in the migration. Change describes the type of change (add / edit / delete).

Migrating a whole integration
Migrating part of an integration
A successful migration summary
The interface reviewing the specific rows selected for a migration.

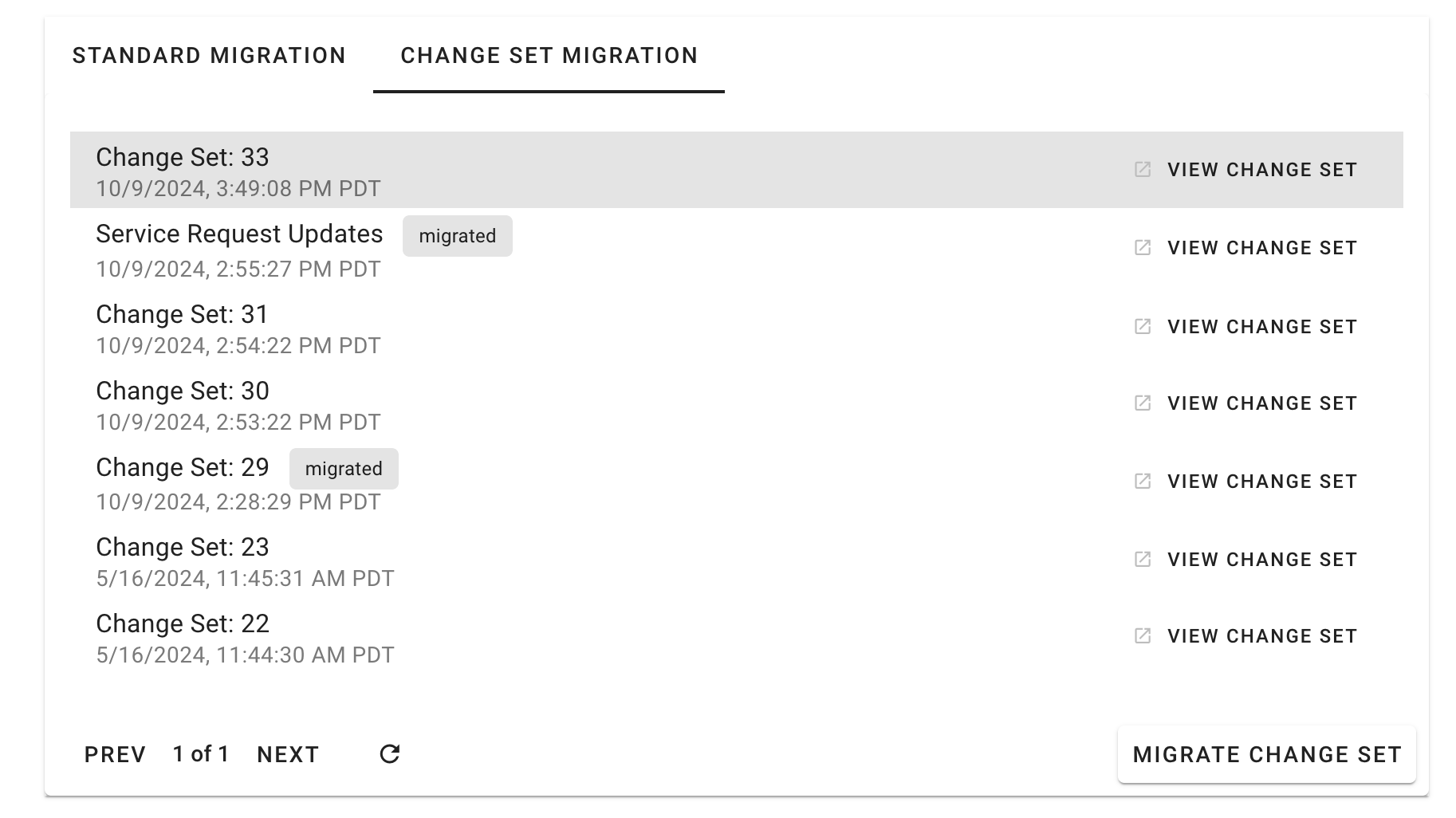

Selecting a change set to migrate
